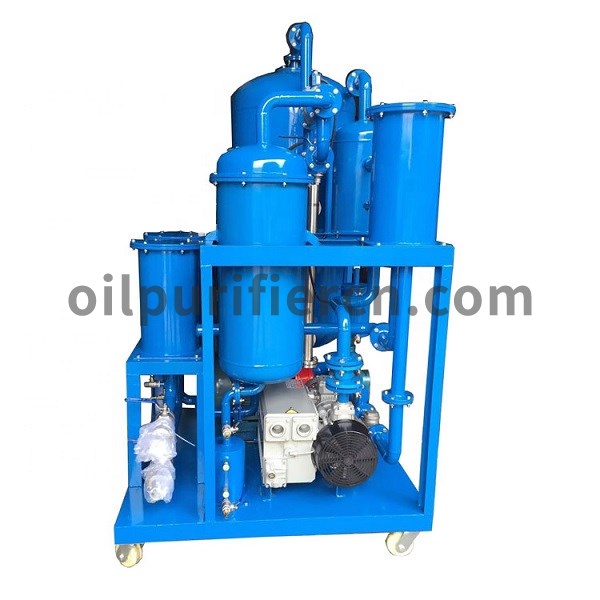

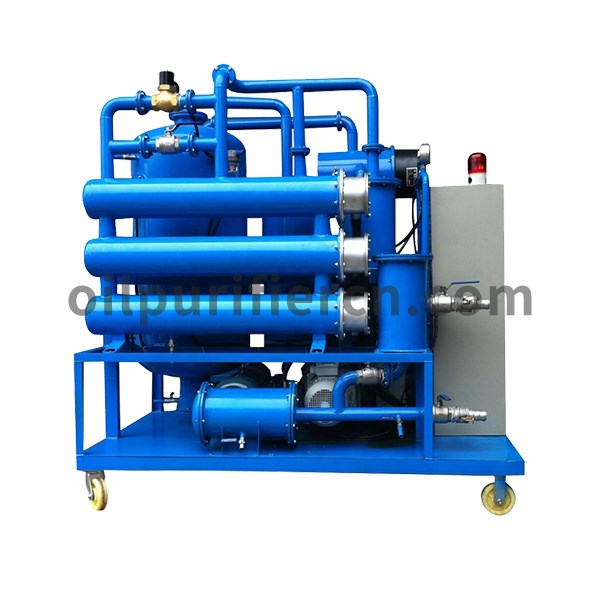

lube oil recycling machine- Kaiqian Oil Purifier

Product description:

Product Name	Lube Oil Recycling Machine
Application	lubricant oil , hydraulic oil, anti-abrasive hydraulic oil, compressor oil, conduction oil, heavy duty gear oil ,refrigerator oil
Features	vacuum separation , precise filtration, molecular adsorption, vacuum drying

Ⅰ.TY-R 100 High Efficiency Lubricant Oil Purifier Working Principles

This plant through the precision filter, the oil purification cycle is completed, which is a pure physical purification equipment. After the oil is heated and atomized, the water begins to evaporate. Under the action of the oil pump, the oil passes through the precision filter to complete a clean oil working cycle. The steam and hot air separated from the vacuum separation chamber enter the condenser, most of the steam condenses into the water storage tank, and the hot air in the oil is discharged from the vacuum pump after cooling.

Ⅱ. The vacuum separation adopts the Italian vacuum separation technology.

The hot oil enters the vacuum separator through the distributor into a coarse-grained mist, and the water begins to evaporate. The oil mist falls on the reaction tower and forms a parabolic operation in the tank. Through short-term circulation, purification can be achieved.

Ⅲ. TY-R 100 High Efficiency Lubricant Oil Purifier Function

3.1For oil stations and oil tanks of hydraulic oil, anti-wear hydraulic oil and other systems, dehydration, degassing and impurity removal shall be carried out to improve cleanliness.

3.2 in addition to 100% free water and 99.9% dissolved water, 100% free gas and 98% dissolved gas can be removed. The treated oil can meet the national standard.

3.3 through the precision filtration system, the cleanliness of the medium is improved to das1638 - < 6, without changing the physical properties and the chemical properties of the oil, so the lubrication effect is better.

3.4 small energy consumption, low operation cost, good configuration, good continuity, suitable for online operation.

Ⅳ.Treated Oil Index by TY-R Series Lubricating Oil Recycling Plant

Item	Unit	Index	Method
Mechanical Impurities	％	无 None	GB/T511
Demulsification Value	Min	≤15	GB/T7605
Water	Mg/L	≤50PPM	GB/T7600
Acid	mgkoH/g	≤0.3	GB/T264
Cleanliness	Class	≤6	NAS1638
Filter Precision	≤5um

TY-R Series Lube Oil Recycling Plant Technical Parameters

Model Item	Unit		TY-R20	TY-R30	TY-R50	TY-R80	TY-R100		TY-R150	TY-R200	TY-R300
Flow Rate	L/min		20	30	50	80	100		150	200	300
Working Vacuum	Mpa		－0.08～－0.096
Working Pressure	Mpa		≤0.5
Working Temp.	℃		≤10～80 Adjusted freely
Power	V		380-480V/50-60Hz Three-phase four-wire（Customizable as required）
Electrical Heating Power	KW		24	30	36	42		54	66	72	90
Total Power	KW		26	33	39	45		57	72	86	105
Inlet & Outlet Pipe Diameter	mm		Φ25	Φ32	Φ42	Φ42		Φ48	Φ48	Φ50	Φ60
Weight	Kg		480	550	600	1050		1150	1450	1600	2200
Dimension	L	mm	1150	1350	1400	1500		1550	1550	1600	1650
	W	mm	910	1000	1100	1300		1350	1350	1400	1450
	H	mm	1550	1600	1650	1750		1800	1850	1900	2000
