waste Oil To Diesel Distillation Plant

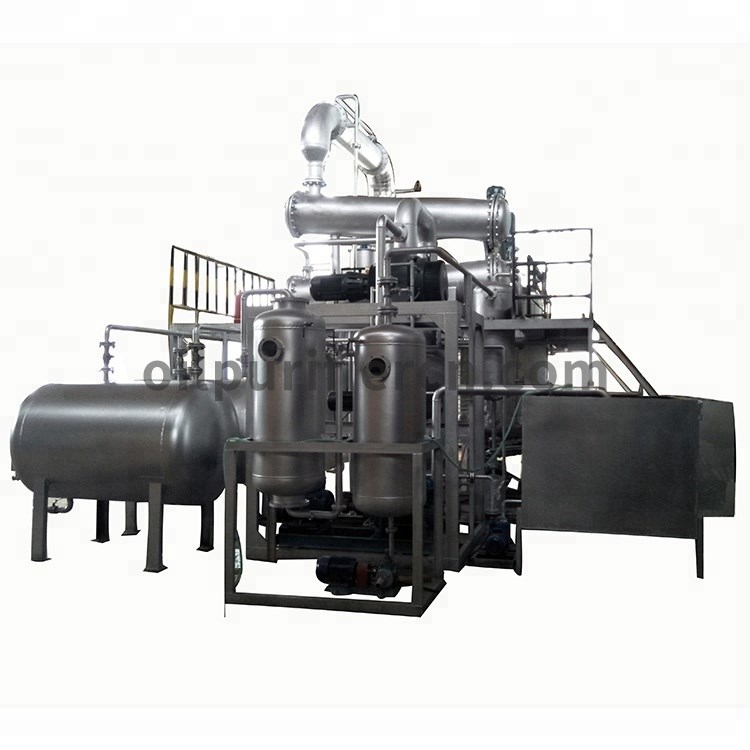

Used Oil Distillation Plant

    Model:KTS-C5、KTS-C15、KTS-C20、KTS-C30、KTS-C50、KTS-C100

    Handling Capacity:5T/D、15T/D、20T/D、30T/D、50T/D、100T/D

    Working Pressure: ≤0.5 MPa

    Working vacuum: -5~-20Pa

    temperature:≤350℃

    Power supply:380-480V/50-60Hz Three-phase four-wire(Customizable as required)

    Total Power: 80KW、120KW、125KW、140KW、180KW、210KW



  • FEEDBACK

Ⅰ. Used Oil Distillation Plant Process

It adopts high vacuum, atomization and flash distillation technology ,with below features :

1.1 Low working temperature (much lower than the boiling point), high vacuum (no load ≤ 5Pa), short heating time (in seconds), high efficiency separation, etc. Especially suitable for substance separation with high boiling point, heat sensitivity and easy oxidation .

1.2 It can remove low molecular substances (deodorization), heavy molecular substances (decolorization) and remove impurities in the mixture effectively.

1.3 The separation process is the physical separation process, which well protected the oil without be polluted secondary, especially for maintaining the oil quality when extracting.

1.4 With high degree of separation and high vacuum molecular distillation technology, which is more efficiency than the traditional distillation and ordinary thin film evaporator.

1.5 With specialized chemical catalysts and additives, even if under normal pressure, when the waste oil is heating up to 400 ºC, there will be no obvious oil cracking. while under normal pressure, the oil begin to carbonization and coke when the waste oil heating up to 300 ºC without any catalysts, so the recycling oil quality will be reduced and the recovery rate will be decreased too. Because there are much colloid, asphalt, free carbon and other impurities in the waste engine oil, only by catalysts, it can prevent these substances from coking effectively, guaranteeing prolong the machine's life time and improving the oil recovery rate of the waste oil.

Ⅱ. Used Oil Distillation Plant Process Principle

 Oil separation according to the different distillation temperature(liquid-liquid separation), we can get light gasoline/diesel,light base oil, heavy base oil .

2.1 When the oil heated to 180-270ºC,300-500Pa vacuum degree ,light gasoline/diesel components will be pulled out ;

2.2 When the oil heated to 280-300ºC,200-300Pa vacuum degree ,light base oil components will be pulled out ;

2.3 When the oil heated to 300-350ºC,20-50Pa vacuum degree ,heavy base oil components will be pulled out .Cut fractions through condensing then collect to oil tanks .

2.4 The residual oil, light component and extracted oil produced during the process are sold as the by-products of industrial fuel oil.

2.5 Waste oil distillation plant and auxiliary facilities are all sealed, tail gas is collected , and combustion in heating furnace .There is no exhaust in production .

2.6 Our technology no need to pretreat the waste oil material ,without acid alkaline wash and clay process ,no waste residue discharge .

2.7 The waste oil material contains water about 3-5%,it will distilled and condensed during process .There also has 2~3% steam water will be condensed during later refining process .After aeration flotation, the two parts of the oily water can be discharged into the sewage pipe line in the park.

Ⅲ. Tyre Oil and Plastic Oil Distillation Equipment Refined Oil Index

NO.

Item

Test Method

Refined Oil Index

Standard Value

01

Viscosity(15℃)

ASTM D1298

0.84kg/L

.....kg/L

02

Viscosity index (40℃)

ASTM D445

3.36cst

1.6-5.8cst

03

Pour Point

ASTM D97

-19℃

≥0℃

04

Flash Point(open)

ASTM D93

60℃

≥55

05

Water Content

ASTM D95

Trace%vol

≤Trace %vol

06

Sulfur

ASTM D1226

0.15%Wt

0.2%Wt

07

color

Yellow / transparent / Pale yellow / transparent


Ⅵ. Pyrolysis Oil Distillation Equipment Models and Specifications

Model

designation

Unit

KTS-C5

KTS-C15

KTS-C20

KTS-C30

KTS-C50

KTS-C100

Handling Capacity

T/D

5

15

20

30

50

100

Working Pressure

Mpa

≤0.5

Working vacuum

pa

-5~ -20

Temperature

≤350

Working Noise

dBA

≤85

The power

V

380-480V/50-60Hz Three-phase four-wireCustomizable as required

Total Power

KW

80

120

125

140

180

210

Cooling Water

35

40

50

60

80

160

Weight

T

16

19

22

26

46

56

Dimension

L

m

15

17

17

25

35

45


W

m

4

6.5

10

12

16

20


H

m

6

6

6

6

6.5

8

Notes

1.We can customize 150 -300TPD equipment as required

2.Diesel and natural gas heating method will be more economical.
