Coalescence Oil Purifier

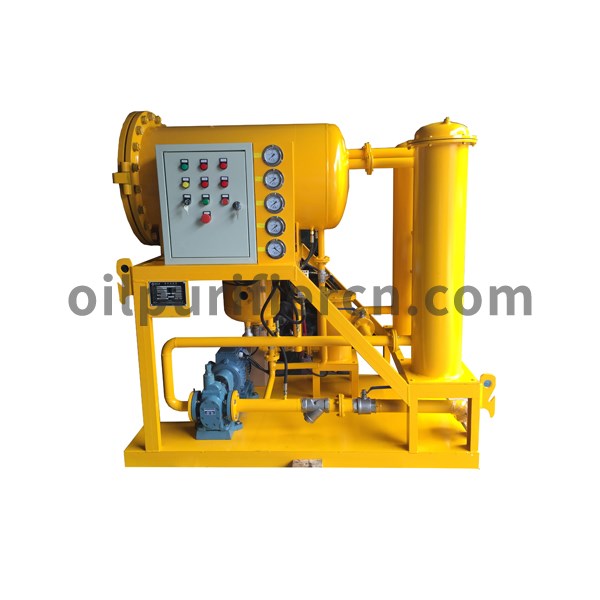

JJS-JY Series Coalescence Oil Purifier

    Model: JJS-JY30、JJS-JY50、JJS-JY100、JJS-JY200

    Flow Rate: 30L/min、50L/min、100L/min、200L/min

    rate pressure: 0.6 MPa

    Power supply:380-480V/50-60Hz Three-phase four-wire(Customizable as required)

    motor power:1.1KW、2.2KW、3KW、5.5KW


  • FEEDBACK

  Ⅰ. JJS-JY Series Coalescence Oil Purifier Usage

  1.1 the application on bearing cleaning for diesel,coal oil ,lube oil hydraulic oil and other oil purification.

  1.2 Removal the moisture and impurities the oil and promote the cleanliness on overall system.

  1.3 It can remove 100% free water and 99.9% dissolve water.

  Ⅱ. Oil pollution analysis

  2.1 The moisture and the impurities will infiltrate into oil in the process of cleaning and storage, resulting in oil oxidation, oil deterioration, kerosene cleanliness reducing, oil denaturing polymerization and the macromolecules formation. Then the oil changes and then organic acid appears, thereby the mental surface will be eroded and the oil performance will be losing.

  2.2 Impurities influencing the cleanliness of oil. For the traditional filtration and separation equipment, it's difficult in separating impurities from mixed oil. Our company developed the coalescence separation oil purifier combines the precision filter and efficient dehydration functions, it can remove the oil particles impurities, emulsified water and free water effectively, without damaging the quality of oil. For the oil including large amount of moisture, it is particularly significant in the separation performance, and the separation speed is several times more than the traditional speed.

  Ⅲ.  After treatment coalescence oil parameter

item

unit

treatment parameter

test method

Mechanical impurities

no

GB/T511

water

Mg/L

≤80ppm

GB/T7600

acid value

mgkoH/g

≤0.3

GB/T264

Cleanness-degree

grade

≤6-7

NAS1638


JJS-JY Series Coalescence Oil Purifier Technical Parameters

model

JJS-JY30

JJS-JY50

JJS-JY100

JJS-JY200

rate flow L/min

30

50

100

200

rate pressure Mpa

0.6

original pressure loss Mpa

≤0.1

pre-pump filter precision μm

100

primary filter precision μm

102040

secondary filter precision μm

3510

motor power Kw

1.1

2.2

3

5.5

voltage V

AC 380-480V/50-60Hz Three-phase four-wireCustomizable as required

weight Kg

200

300

420

860

dimension

1200 X600 X1200

1600 X880 X1400

1800 X1060 X1500

2500 X1200 X1800
