Hydraulic Oil Purifier

Hydraulic Oil Treatment Machine

Model： TY-G20、TY-G30、TY-G50、TY-G80、TY-G100、TY-G150、TY-G200、TY-G300

Flow Rate： 20L/min、30L/min、50L/min、80L/min、100L/min、150L/min、200L/min、300L/min

Work vacuum：-0.08～0.096 MPa

Work pressure： ≤0.5 MPa

Work temperature： ≤10-80℃ Adjustable

Power supply：380-480V/50-60Hz Three-phase four-wire(Customizable as required)

Heating power：24KW、30KW、36KW、42KW、54KW、66KW、72KW、90KW

Total power： 26KW、33KW、39KW、45KW、57KW、72KW、86KW、105KW

FEEDBACK

Product Description
Scene pictures

Ⅰ. Hydraulic Oil Treatment Machine Usage

How to clean hydraulic oil? After the hydraulic oil is used, it will produce impurities, moisture, gas and other harmful substances to contaminate the hydraulic system. Cleaning the hydraulic oil can adopt advanced hydraulic oil treatment machine designed by technology.

This machine matches the technological connection of the hydraulic oil tank and gas station. The online processing can also be processed offline. It has a high degree of automation, compact size, flexible and convenient movement. This guarantees the long-term reliable operation of the whole machine. It has many advanced technologies such as automatic pressure alarm shutdown system, automatic overload protection system, automatic constant temperature system, automatic anti-injection protection, etc., which guarantee the equipment's fully automatic and safe operation.

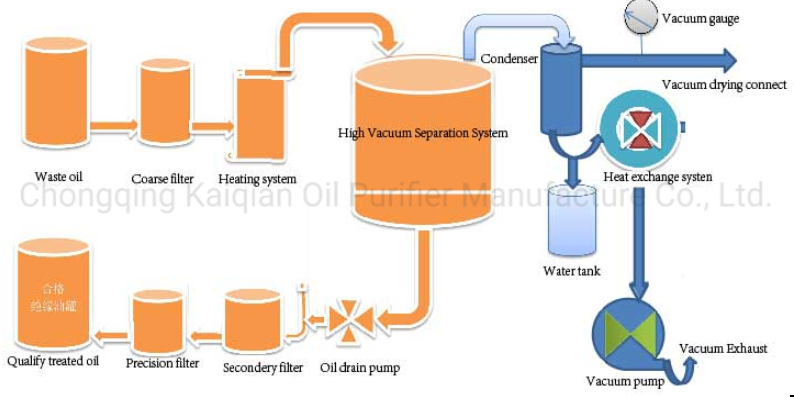

Ⅱ. TY-G Series Vacuum Hydraulic Oil Purifier Flow Chart

Hydraulic Oil Recycling Flow Chart.png
