Transformer Oil Purifier

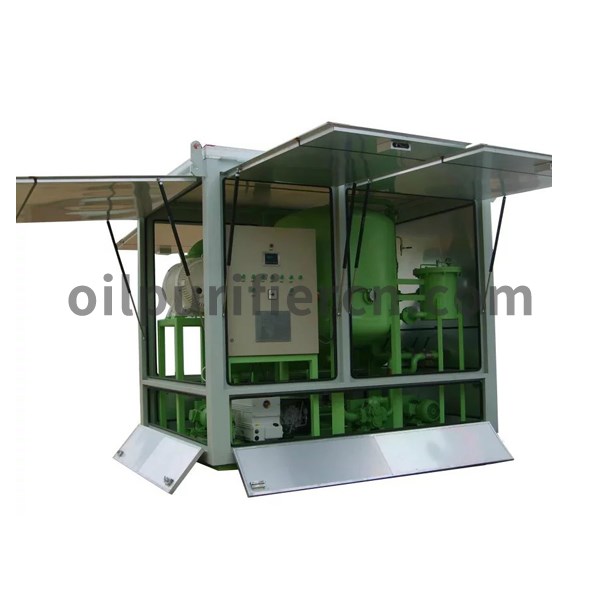

ZL-JS Double-stage Vacuum Transformer Oil Purification Machine

    ZL-JS Double-stage Vacuum Transformer Oil Purifier Usage

    Model: ZL-JS30、ZL-JS50、ZL-JS100、ZL-JS150、ZL-JS200、ZL-JS300

    Flow Rate: 30L/min、50L/min、100L/min、150L/min、200L/min、300L/min

    Work vacuum: -0.08~0.098 MPa

    Work pressure: ≤0.5 MPa

    Work temperature: 45-65℃ Adjustable

    Power supply: 380-480V/50-60Hz Three-phase four-wire(Customizable as required)

    Heating power:30KW、36KW、72KW、96KW、144KW、180KW

    Total power: 33KW、40KW、76KW、102KW、152KW、190KW


  • FEEDBACK

  I. ZL-JS Double-stage Vacuum Transformer Oil Purifier Usage

  It is widely used in the oil purification treatment and vacuum hot oil circulation drying in the installation and maintenance of various large transformer equipment.. Not only use in Insulating oil purification treatment in 110KV-550KV transformer, but also applies to high-grade new oil, the high depth of processing imported oil. Compared with the single-stage vacuum purifier machine, the machine increases the Roots pump pressurization system, secondary high vacuum separation systems and three-dimensional flash rapid evaporation system , it can quickly dewater, degas, and remove the acetylene, acid value and free carbon , The transformer oil breakdown voltage value will be higher after treated, It ‘s not only used for oil purifier but also as a separate vacuum source which have the function of vacuum drying and oil injection for transformer equipment.

Transformer Oil Purification.jpg

  Ⅱ. ZL-JS Double-stage Vacuum Transformer Oil Purifier Principle

  The double stage Transformer oil filtration machine was designed according to decompression separation, precise filtration, Spiral spray atomization separation technology, molecular adsorption ,vacuum drying principle. The treated oil can meet the standard of the national standard.

  Ⅲ. ZL-JS Double-stage Vacuum Transformer Oil Purifier Process

  The oil to be treated passes through a strainer and enters the heater for heating, the heated oil will go through the semi precision filtration and arrives at the Spiral spray atomization separation system. The insulating oil turns into coarse mist and falls onto the reaction tower to enter the vacuum separation chamber. The moisture begins to evaporate and the oil mist forms a three-dimensional, multi-layer evaporation structure in the tank, which can be purified through a short-term cycle. After dewater, degas, and impurity ,acid removal, the treated oil will go through the precision filtration to achieved the purifier circulation purpose. The Water vapor molecules and the hot air are separate from the vacuum separation chamber enters the condenser ,Most of the water vapor is condensed into water and stored in a water tank. The hot air in the oil is cooled and discharged by a vacuum pump.

  Ⅳ. ZL-JS Double-stage Vacuum Transformer Oil Purifier Function

  4.1. Dehydration, degassing and impurity removal of 110-1100KV main transformer insulation oil .

  4.2. Acetylene removal of 110-1100KV main transformer insulation oil .

  4.3. Vacuum drying of 110-1100KV main transformer insulation oil .

  4.4. It can remove not only 100% free water and 99.9% dissolve water, but also 100% free gas and 98% dissolve gas.

  4.5. Customized parts: PLC, frequency conversion technology, trailer and so on.

  4.6. Advantages and characteristics

  double stage Insulation oil vacuum purifier machine process design, double stage efficient vacuum system, kaiqian unique Vacuum separation technique, it can quickly dewater, degas, and remove the acetylene, acid value and free carbon, colloid. increase oil limit Breakdown voltage value.

  (a) Oil initial value: water content: ≤50mg / L, containing gas: ≤10% (volume fraction), the breakdown voltage: ≥25KV

  (b) Secondary purification: water content:≤15mg / L, containing gas:≤0.1% (by volume), the breakdown voltage: ≥50KV (ball electrode).

  (c) Three purification: residual moisture: ≤5-10ppm, residual gas≤0.05%, acetylene content :0, the breakdown voltage:≥60KV (ball electrode)

  Note: water content and gas content measurements in accordance with relevant GB, DL or IEC standards.

  Ⅴ. Transformer Oil Index by Double-stage Vacuum Transformer Oil Purifier

Items

Unit

Index

Testing method

Mechanical impurities

NO

GB/T511

Demulsification value

Min

≤30

GB/T7605

Water Content

Mg/L

≤5PPM

GB/T7600

Acid value

mgkoH/g

≤0.3

GB/T264

Cleanness

grade

Grade 6

NAS 1638

Breakdown voltage value

KV

55-65

GBDL Or IEC Standard

Residual gas

≤0.01

≤0.01

The gas content measurement according to the standard of GB, DL and IEC

Acetylene

Mg/L

0

The gas content measurement according to the standard of GB, DL and IEC

Filter precision

1um

  Ⅵ. Technical Parameters of ZL-JS Double-stage Vacuum Transformer Oil Purifier

Model

Item

Unit

ZL-JS30

ZL-JS50

ZL-JS100

ZL-JS150

ZL-JS200

ZL-JS300

Flow Rate

L/min

30

50

100

150

200

300

Work vacuum

Mpa

0.080.098

Work pressure

Mpa

≤0.5

Work temperature

4565 Adjustable

Power supply

V

380-480V/50-60Hz Three-phase four-wireCustomizable as required

Heating power

KW

30

36

72

96

144

180

Total power

KW

33

40

76

102

152

190

Diameter of intel&outlet

mm

Φ32

Φ38

Φ42

Φ48

Φ64

Φ76

Weight

Kg

685

850

1200

1650

2300

3100

Dimensions

Length

mm

1100

1200

1450

1700

1750

1800

Width

mm

950

1000

1150

13500

1450

1500

Height

mm

1450

1500

1700

2000

2000

2100






变压器油滤油机现场处理图
