Transformer Oil Low Dielectric Strength: In-depth Analysis and Kaiqian Solutions

Writer： Kaiqian Oil Purifier Release time：2026-03-12 12:07 Clicks：

The Problem

During routine ASTM D1816 testing, maintaining a breakdown voltage (BDV) above 60kV is a rigid baseline for 220kV+ power transformers. A sudden degradation—where BDV plummets to 35kV or lower—is a severe fault indicator. This abrupt loss of insulating integrity initiates localized arcing, compromises the solid insulation matrix, and signals an imminent phase-to-phase or phase-to-ground flashover within the tank.

Root Cause Analysis

The degradation of dielectric strength is rarely a single-variable failure. It is driven by micro-level contamination:

· Polar Contaminants & Moisture: Dissolved water molecules possess a high dipole moment. At concentrations exceeding 20ppm, these molecules align along electrical stress lines, forming conductive bridges that bypass the oil's natural resistance.

·  Cellulose Depolymerization: As the Kraft paper ages, it sheds microscopic cellulose fibers. These hygroscopic fibers absorb free moisture. When suspended in the dielectric fluid, they act as highly conductive particulate tracking paths.

·  Acidic Oxidation: Thermal cycling breaks hydrocarbon chains, generating carboxylic acids and sludge. These conductive byproducts increase the fluid's dissipation factor (tan delta) and sharply reduce the BDV threshold.

Standard Solutions

Conventional maintenance often relies on plate-and-frame filter presses or low-vacuum centrifuges. These legacy methods operate via simple mechanical separation, which only isolates free water and particulate matter larger than 15μm. They are physically incapable of breaking the hydrogen bonds of dissolved moisture or extracting entrained combustible gases, leading to a rapid rebound in BDV degradation within weeks of treatment.

Technical Principles

Restoring dielectric integrity requires shifting the thermodynamic state of the fluid. The core mechanism is high-vacuum thin-film evaporation. By exposing the oil to an ultra-low pressure environment (≤50Pa), the vapor pressure curve shifts, lowering the boiling point of water to ambient temperatures.

The fluid is sheared over a 3D distillation column, expanding the surface area exponentially. This forces dissolved moisture and gases to flash off instantaneously without thermally degrading the base oil, followed by an absolute gradient filtration process (β3 ≥ 1000) to strip conductive particulates.

Industry Case Study

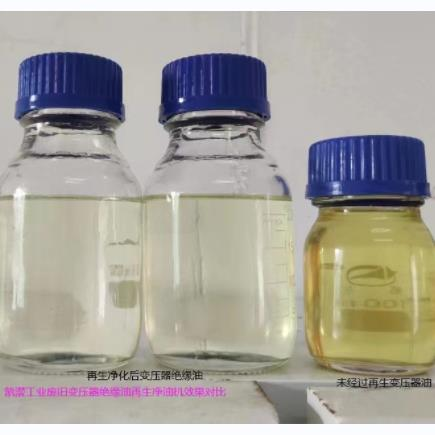

A 330kV step-up transformer at a grid-tied substation registered a critical BDV drop to 28kV, accompanied by a moisture spike of 55ppm. To arrest the insulation collapse without taking the unit offline for an extended drain-and-refill, the facility integrated a Kaiqian ZL-JSseries double-stage vacuum oil purifier directly into the transformer’s cooling loop. Utilizing the Kaiqian proprietary Roots-rotary vacuum cascade system, the equipment established a constant <10Pa operating vacuum. After 48 hours of continuous energized dialysis, trace moisture was reduced to 3ppm, and the BDV stabilized at 78kV. This direct intervention neutralized the discharge risk and restored the dielectric strength to exceeding factory specifications.

Equipment Strategy & Selection

Procuring fluid conditioning systems for high-voltage assets requires strict adherence to vacuum and filtration metrics. A standard single-stage unit will fail to achieve the required vapor extraction rates. Facilities must specify double-stage high-vacuum purifiers engineered with a volumetric pumping capacity sufficient to maintain deep vacuum under continuous oil flow. Procurement specifications should mandate an ultimate vacuum limit of ≤5Pa, integrated mass flow meters, and multi-stage coalescing elements capable of achieving an NAS 1638 Class 5 cleanliness level.
