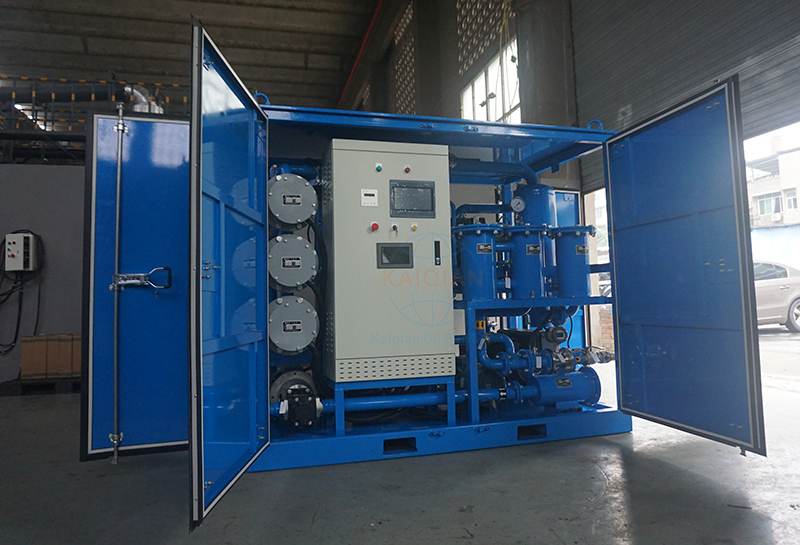

Ⅰ. Trailer Vacuum Oil Purifier Equipment Usage
ZL-JS series trailer vacuum oil purifier equipment is widely used in electric power, oil, transportation,etc. This machine is additional equipped with a trailer based on the vacuum oil purifier, and could be worked more effectively in the field. Besides applied the shock-absorbing spring steel plate, with brake and turn signal, will be safe and reliable in the process of driving.
.jpg)
Ⅱ. Application

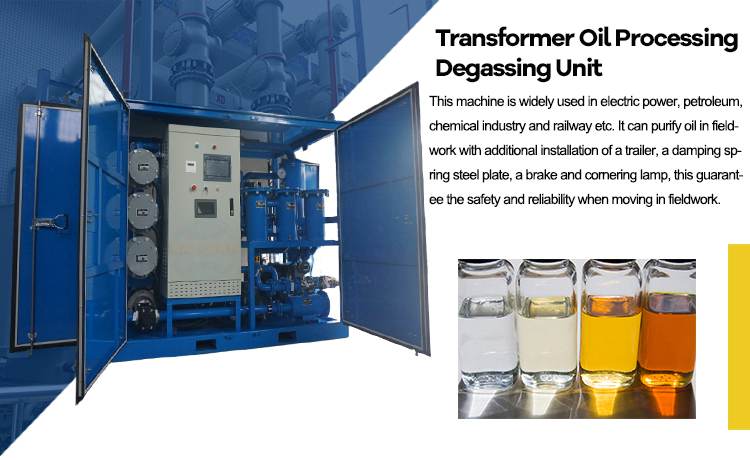

1.The transformer oil processing degassing unit is for degassing transformer oil, drying (removal of water) and removal of mechanical impurities and improve the breakdown value(BDV). Not only suitable for used transformer insulation oil purification treatment, but also suitable for deeper treatment of high-grade new transformer oils. It also works with other electrical insulating oil such as cable, circuit breakers, capacitor etc.
2.It also can be used for heating and filtration the transformer by means of the oil in it, to do the hot oil circulation.
3.It is also an independent vacuuming unit for the transformer too.
4.The machine with mode for degassing- filtration- drying
5.the machine with another mode for heating - filtration mode to choose too

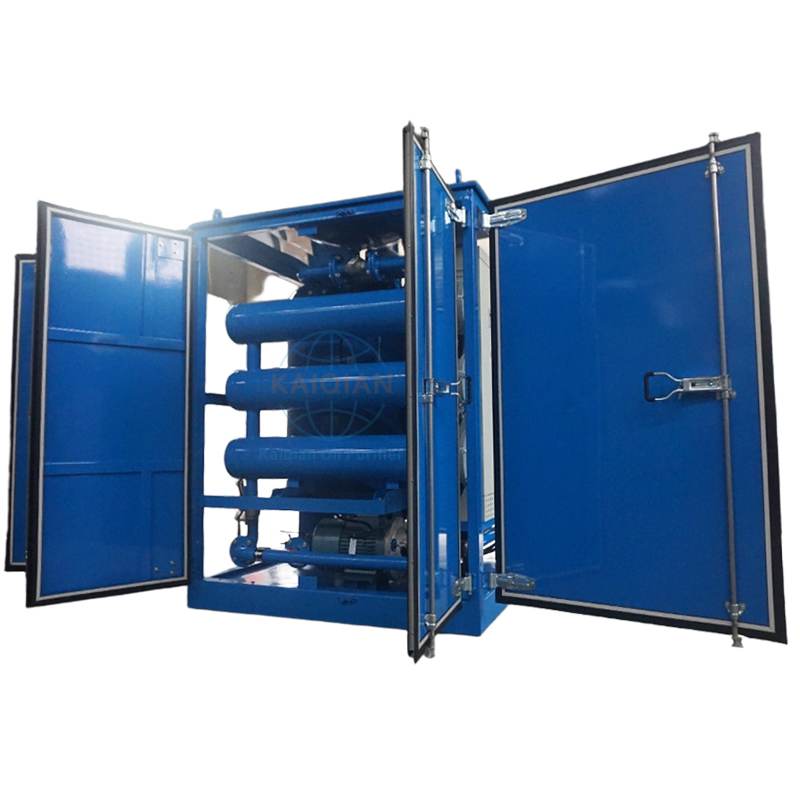

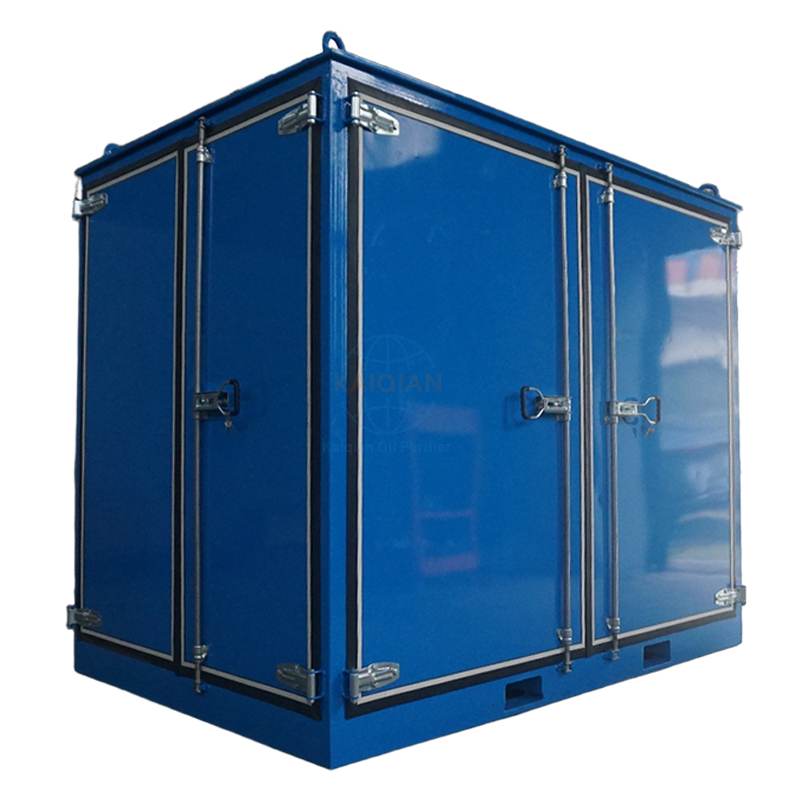

6.The machine with mental frame equipped, (with the doors and holes at the places where the pipes join), protected from rain, sun and dust. Transport can be carried out in an open vehicle body. And equipped with appropriate brackets for lifting by crane too, it is easy and convenient to move to different sites by car.
Ⅲ. Treated Oil Index by Trailer Vacuum Oil Purifier Equipment
Items | Unit | treatment | After treatment |
Frequency | Hz | 50 | 50 |
Operating vacuum | Pascal (Pa) | ≤ 100 | 98 |
Oil heater capacity | kW | 80 ÷ 100 | 100 |
Breakdown voltage | kV | 70 | 70 |
Moisture content | ppm | 10 | 10 |
Filtration fineness | Mkr | 5 | 5 |
Two-stage vacuum pump | m³/h | 1000 | 1000 |
Pumping speed | m³/h | 100 | 100 |
