Top Oil Purifier – Advanced Industrial Oil Purifier Machine for Maximum Reliability
When it comes to maintaining the performance and longevity of industrial oils, the Top Oil Purifier stands out as a premier solution. This high-performance oil purifier machine is designed to efficiently remove contaminants such as water, gases, and solid particles from various types of oils, including transformer oil, lubricating oil, and hydraulic fluid. Suitable for both online and offline purification, it helps industries enhance operational safety, minimize downtime, and reduce maintenance costs.
How It Works
Using a combination of high vacuum dehydration, precision filtration, and degassing technology, this oil purifier machine effectively purifies oil in a continuous process. The system lowers the boiling point of water through vacuum pressure, separating moisture and gases from the oil. Multi-stage filters capture fine particulate matter, ensuring the oil meets strict industrial standards.
Key Features
l High-Efficiency Vacuum System: Reduces dissolved water to ≤3 ppm and gases to ≤0.05%
l Multi-Stage Filtration: Removes particles as small as 1 micron with ≥99.5% efficiency

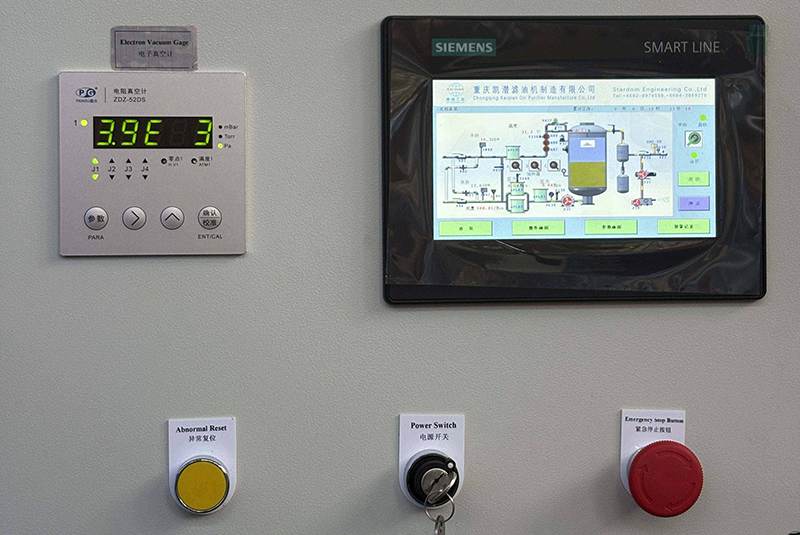

l Automatic Operation: Equipped with PLC control, auto-drainage, and real-time monitoring sensors
l Robust Construction: Includes stainless steel contact parts, explosion-proof options, and anti-corrosion design
l Flexible Configuration: Available in skid-mounted, portable, or trailer-mounted versions
Items | Unit | Index | Testing method |
Mechanical impurities | ％ | None | GB/T511 |
Demulsification value | Min | ≤30 | GB/T7605 |
Water Content | Mg/L | ≤5PPM | GB/T7600 |
Acid value | mgkoH/g | ≤0.3 | GB/T264 |
Cleanness | Class | 6 | NAS 1638 |
Breakdown voltage value | KV | 55-65 | GB、DL Or IEC Standard |
Residual gas | ≤0.01％ | ≤0.01 | The gas content measurement according to the standard of GB, DL and IEC |
Acetylene | Mg/L | 0 | The gas content measurement according to the standard of GB, DL and IEC |
Filter precision | 1um | ||
Technical Specifications
Flow Rate: 500–12,000 L/h
Working Vacuum: ≤80 Pa
Dielectric Strength: ≥70 kV
Operating Temperature: 40–70°C
Continuous Operation: Up to 200 hours
Power Supply: Customizable based on region and requirement
This oil purifier machine is widely used in:
Power plants and electrical substations
Manufacturing and heavy machinery industries
Renewable energy farms (e.g., wind and solar power facilities)
Marine and mining sectors
Transportation and rail networks
Why Choose Top Oil Purifier Machine?
l Improves Equipment Life: Clean oil reduces wear and tear on critical components.
l Reduces Operating Costs: Minimizes unplanned shutdowns and oil replacement expenses.
l Environmentally Friendly: Extends oil service life, reducing waste and supporting sustainability.
l User-Friendly Design: Features visual indicators, automated controls, and optional remote monitoring.
Customization and Support
We offer tailored solutions to match specific operational needs, including:
Choice of premium components (e.g., Siemens PLC, Atlas vacuum pumps)
Integration of online moisture and particle sensors
Special housing for harsh environments (anti-corrosion, waterproofing)
Training and technical support worldwide
Upgrade your maintenance strategy with our Top Oil Purifier – an all-in-one oil purifier machine engineered for reliability, precision, and ease of use.
