Transformer Oil Purifier

  • 11
  • 33
  • 44

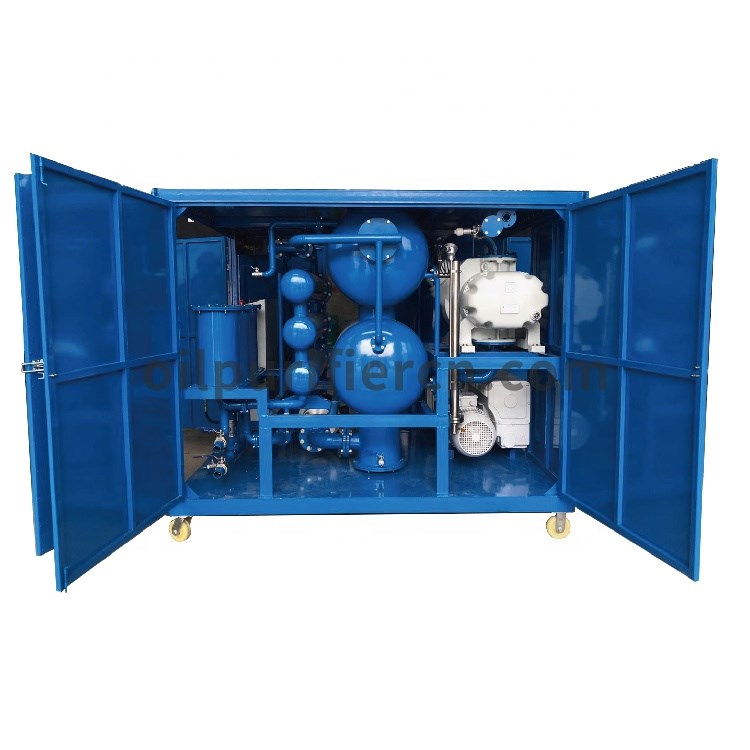

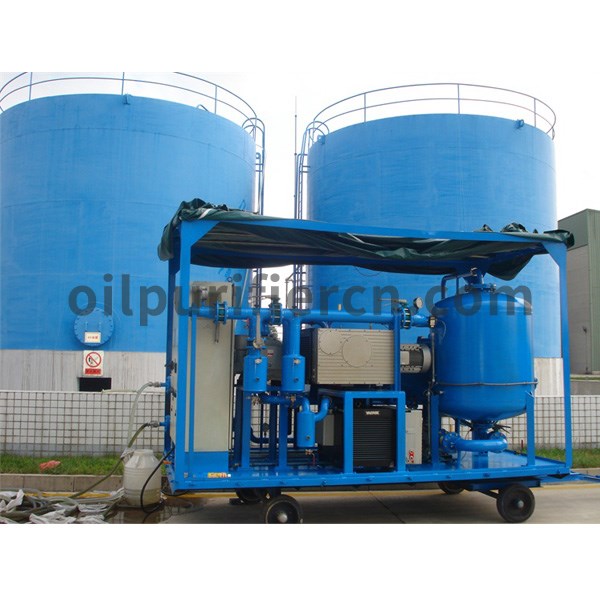

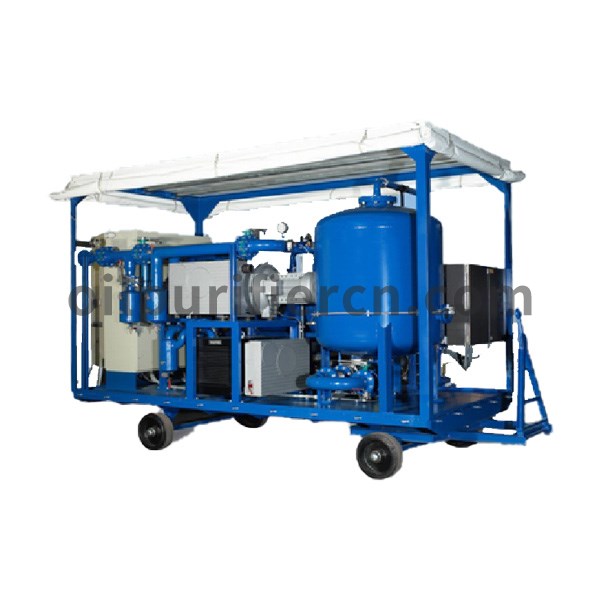

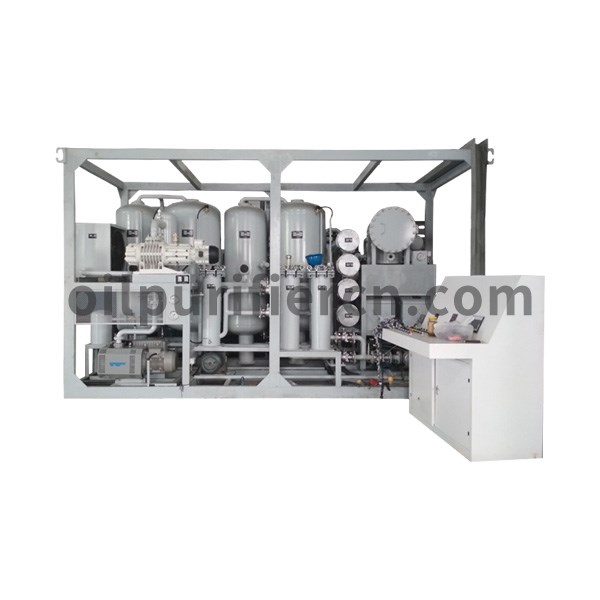

Transformer Oil Recycling Machine

    The transformer oil recycling machine adopts advanced vacuum separation technology, does not use sulfuric acid and clay, and only adds a small amount of additives, which is low in cost and easy to buy; one-click start, simple operation and low operating cost; suitable for lubricating oil and transformer oil.

    The oil can also be bypassed or cleaned on-line as needed to ensure the normal operation of the hydraulic system, power system and lubrication system.

  • FEEDBACK

Ⅰ. Transformer Oil Recycling Machine Usage

UHV Transformer oil filter is specially designed for 330kv-1000kv high voltage and above, UHV Transformer insulating oil purification. It is widely used in electrical equipment for transformer vacuum drying and vacuum oil injection. Compared with the two-stage vacuum oil filter, the UHV Transformer oil filter can increase the three-stage and above roots pump pressurization system, which can quickly dehydrate, degass and remove acetylene, making the acetylene value 0.

Ⅱ. Transformer Oil Recycling Machine Working Process

After impurity removal, dehydration, degassing and acid removal, the oil will pass through precision filter to complete a working cycle under the action of oil pump. The water vapor separated from the vacuum separation chamber enters the chiller, and most of the water vapor condenses into water and is stored in the water sump and discharged out of the machine. The purified oil returns to the prepared oil tank through the oil outlet.

Patent Automatic Vibration  defoaming technology



infrared defoaming   technology


×

most suppliers use this kind of technology for defoaming, actually the   truth is they defoaming by make the air into the vacuum evaporation tank, the   air with moisture and impurities, which will make the oil be polluted   secondary.

If u like, i can send u this   video, here i will give pics to show this, u see, when foam decrease, the   vacuum decrease too, and here is a fabric, when defoam, it will be suctioned   to the tank, which means here is air into the tank




Automatic Vibration    defoaming technology


This is our patent   technology in almost 10 years experience in transformer oil filtration. The   design like bellow.

This is the core technology   in vacuum oil purifier, at the bottom of the atomization chamber is equipped   with a number of nozzles which are ejected downward. The the separation tower   is connected with the elastic wire mesh and inner wall of the vacuum   separation kettle tank. this can eliminated the bubble inside the vacuum   tank, with the long time work, the electronic vacuum gauge measured value of   -5Pa-133 Pa and no more foam rising


Ⅲ. Transformer Oil Recycling Machine Advantages

Adopts high Efficiency vacuum system , KAIQIAN own special vacuum separation technology , water, acetylene, acid value, mechanical impurities, free carbon and colloid removal efficient , to improve the pressure value of oil , increase the breakdown voltage , like :

The initial value of oil:water content:≤50mg/L、gas content:≤10 %(volume fraction)、breakdown voltage:≥25KV

The initial value of oil:water content:≤50mg/L、gas content:≤10 %(volume fraction)、breakdown voltage:≥25KV

After the third purification:residual moisture≤5-10ppm、residual gas:≤0.05%、acetylene content is zero、breakdown voltage ≥60KV(Spherical polar)

    Note : water , gas measurement according to GB ,DL ,IEC standard .


Ⅴ. Treated Oil Index by Transformer Oil Recycling Machine

Intem

Unit

Index

Test Method

Mechanical Impurities

GB/T511

Demulsification Value

Min

≤30

GB/T7605

Water

Mg/L

≤5PPM

GB/T7600

Acid

mgkoH/g

≤0.3

GB/T264

Cleanliness

grade

Grade 6

NAS 1638

Breakdown Voltage

KV

55-65

GBDL Or IEC Standard

Residual Gas

≤0.01

≤0.01

The gas content measurement according to the standard of GB, DL and IEC

Ethyne

Mg/L

0

The gas content measurement according to the standard of GB, DL and IEC

Filter Precision

1um

Technical Parameters

Model

Item

Unit

ZJ-D10

ZJ-D150

ZJ-D200

ZJ-D300

ZJ-D350

ZJ-D500

Flow Rate

L/min

100

150

200

300

350

500

Working Vacuum

pa

510

Working Pressure

Mpa

≤0.5

Working Temp.

4565Adjustable

Power

V

380-480V/50-60Hz Three-phase four-wire(Customizable as required)

Heating Power

KW

72

96

144

180

216

288

Total Power

KW

85

110

160

205

240

323

Inlet & Outlet Pipe Diameter

mm

Φ40

Φ50

Φ60

Φ60

Φ80

Φ100

Weight

Kg

685

850

1500

2500

3000

3500

Dimension

L

mm

1100

1200

1450

1700

1750

1800


W

mm

950

1000

1150

13500

1450

1500


H

mm

1450

1500

1700

2000

2000

2100
